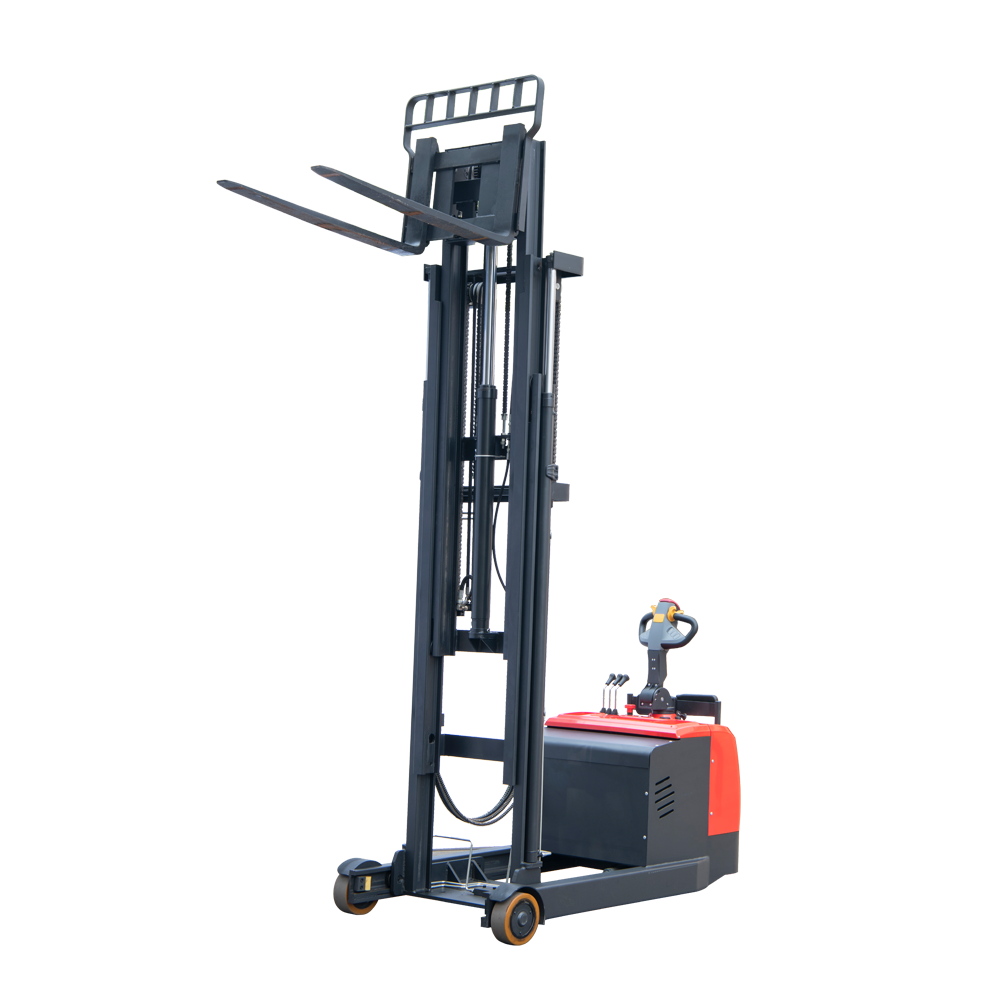

COD-15A

Reach Forklift

Product advantage

Versatile Load Capacity: With a generous capacity of 4400 lbs, the stacker is capable of handling a wide range of material handling tasks, ensuring productivity and efficiency in your operations.

Extended Reach Capability: A reach distance of 19.7 inches allows for easy access to loads that are positioned deeper within racking spaces, enhancing the versatility and utility of this machine in tight spaces.

Height and Reach: Achieve a raised height of 236 inches, making it ideal for stacking and retrieving goods in high places, maximizing vertical storage space in your facility.

Precision Movement: Equipped with EPS (Electronic Power Steering), the stacker offers effortless maneuverability and precise control, reducing operator fatigue and improving safety.

Robust Construction: Built with high-quality steel and components, and reinforced through robotic welding, this reach truck is designed to withstand demanding industrial environments.

Efficient Power System: Powered by a 24V AC drive motor and a 24V lift motor, complemented by a 24V/270Ah battery, the stacker ensures reliable performance and longevity, minimizing downtime.

Operator Comfort and Control: Featuring an ergonomic handle and intuitive controls, this model prioritizes operator comfort, making it easier to manage for extended periods.

Safety and Durability: Polyurethane wheels offer smooth movement and stability, while the steel construction ensures durability against impacts and wear.

Product introduction

Moving Mast Walkie Reach Truck, a powerful combination of a forklift's robustness, a reach truck's precision, and a walkie stacker's maneuverability. This advanced material handling solution is engineered to enhance operational efficiency in various settings, including warehouses, manufacturing plants, and distribution centers.

Product parameter

1.1Brand
LJYLJYLJYLJYLJYLJYLJYLJYLJYLJY
1.2Model
COD-15ACOD-15ACOD-15ACOD-20ACOD-15ACOD-15ACOD-15ACOD-15ACOD-15ACOD-15A
1.3Power type
Battery(AC)Battery(AC)Battery(AC)Battery(AC)Battery(AC)Battery(AC)Battery(AC)Battery(AC)Battery(AC)Battery(AC)
1.4Driving type
StandingStandingStandingStandingStandingStandingStandingStandingStandingStanding
1.5Rated load capacityQ(kg)1500150015002000150015001500150015002000
1.6Load centerC(mm)500500500500500500500500500500
1.7Wheelbasey(mm)1530153015301530153015301700170017001850
Weights
2.1Service Weight (with battery)kg1400145615561656175618001856195621002100
Wheels




3.1wheel type
 PU PU PU PU PU PU PU PU PU PU
3.2Front wheel size mmΦ210×85Φ210×85Φ210×85Φ210×85Φ210×85Φ210×85Φ210×85Φ210×85Φ210×85Φ210×85
3.3Drive wheel sizemmΦ248×75Φ248×75Φ248×75Φ248×75Φ248×75Φ248×75Φ248×75Φ248×75Φ248×75Φ248×75
3.5Number of wheels,front/drive(x=drive wheel)
2/1x+12/1x+12/1x+12/1x+12/1x+12/1x+12/1x+12/1x+12/1x+12/1x+1
Size

4.1Mast closed heighth1(mm)2120162018802120230519452080224024002400
4.2Lift heighth3(mm)1600200025003000350040004500500055006000
4.3Mast extended height with load-backresth4(mm)2340274032403740424047405240574062406740
4.4Overall lengthl1(mm)2480248024802630248024802480248024802630
4.5Overall widthb1(mm)1045104510451045104510451045104510451045
4.6Fork sizel/e/s(mm)1070/110/751070/110/751070/110/751070/110/751070/110/751070/110/751070/110/751070/110/751070/110/751070/110/75
4.7Aisle width for pallet 1000x1200mm, lengthwaysAst(mm)3480348034803480348034803380338033803380
4.8Aisle width for pallet 800x1200mm, lengthwaysAst(mm)3450345034503450345034503450345034503450
4.9Turning radiusWa(mm)2380150015001500150015001500150015001650
Function
5.1Driving speed, laden/unladenkm/h5.2/65.2/65.2/65.2/65.2/65.2/65.2/65.2/65.2/65.2/6
5.2Lifting speed, laden/unladenmm/s85/12285/12285/12285/12285/12285/12285/12285/12285/12285/122
5.3Lowering speed, laden/unladenmm/s125/80125/80125/80125/80125/80125/80125/80125/80125/80125/80
5.4Maximum climbing ability, laden/unladen%(tanθ )6/106/106/106/106/106/106/106/106/106/10
5.5Braking method
ElectromagneticElectromagneticElectromagneticElectromagneticElectromagneticElectromagneticElectromagneticElectromagneticElectromagneticElectromagnetic
Drive
6.1Drive motorkw2.22.22.22.22.22.22.22.22.22.2
6.2Lift motorkw3333333333
6.3Battery, voltage/rated capacityV/Ah24V/240Ah24V/240Ah24V/240Ah24V/240Ah24V/240Ah24V/280Ah24V/280Ah24V/280Ah24V/280Ah24V/280Ah
6.4Battery weightkg220220220220220255255255255255
6.5Steering system
Electric steeringElectric steeringElectric steeringElectrical steeringElectric steeringElectric steeringElectric steeringElectric steeringElectric steeringElectric steering
